Master Controller

£285.00

Awaiting stock

Category: Controllers

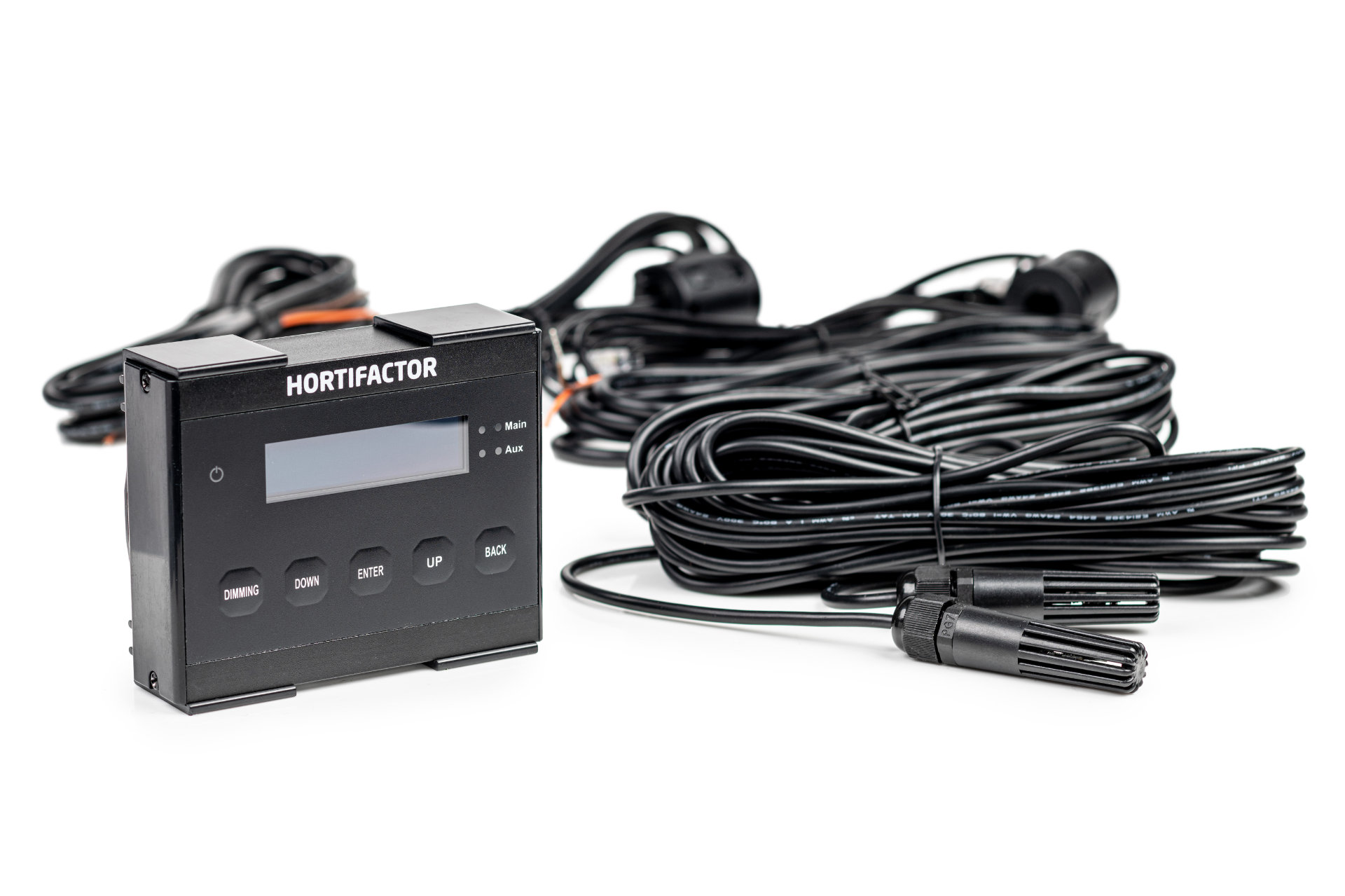

The Hortifactor Master Controller is a comprehensive system to eliminate complete crop failure. In the event of a ventilation system failure, the Master Controller is activated to automatically dim and ultimately power down your lights at a pre-determined temperature.

In case of a mechanical issue, an automatic notification will be sent. An alarm contact can be installed, ensuring users receive alerts in the event of any power outage or sensor failure.

Why do I need it?

Simple installation. Create a secure fitting, clip the Master Controller into the bracket and plug in the lights. It really is that simple and avoids the need to liaise with external contractors.
Easy to use. The two channels allow control of 100 full fixture lights.
Peace of mind. With our simple plug-in Master Controller, relax in the knowledge that the wellbeing of your crop is in safe hands.
Flexible settings. Straightforward instructions incorporating sunrise and sunset options ensuring full temperature and humidity control.

Features

  • Suitable for all kinds of Hortifactor fixtures with controller ports
  • Maximum lighting fixture 50–100 units
  • Auto dim at set temperature
  • Auto-shutdown at set temperature
  • Sunrise and Sunset time period
  • Alarm contracts NO/NC. No need for electrical switchboard
  • Safe and easy installation
  • Protection against short circuit
  • Double temperature safety feature

An advanced Master Controller is currently in development with a predicted release date of 2022, offering unique features and enhanced functionality.

InputVoltsAdapter:100V-240V AC 50/60Hz -5V DC
Select ballast type315W/400W/600W/ 630W/750W/1000W
Set output level50-115%
Outputs2
Temperature sensors2
Number of ballasts per output50
Total number of ballasts100
External Contactor Modules2 optional
Case Length104.8mm, 4.13"
Case Width86.4mm, 3.40"
Height34.3mm, 1.35"
Weight0.25kg, 0.55lb
FunctionsNo need for a switchboard, Easy and safe installation (low voltage device), Protected against shortcuts, Double temperature safety feature, For 100 ballasts, Show output as W or %, Auto shutdown at set temp, Sunrise/sunset period, Alarm contacts NO/NC

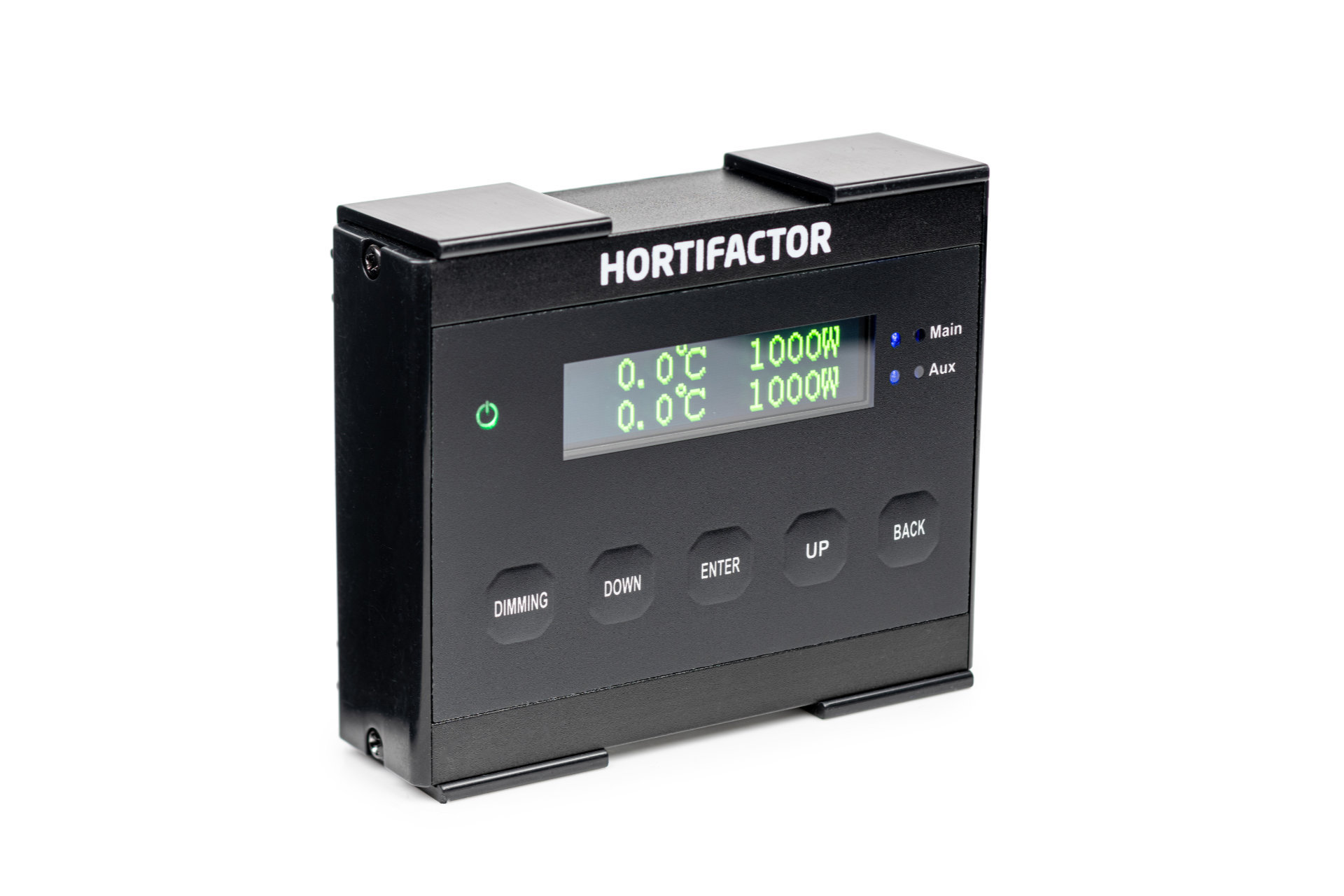

A. DimmingView and adjust output level
B. DownNavigate down in menu/decrease value
C. EnterGo to menu/confirm
D. UpNavigate up in menu/increase value
E. BackNavigate back in menu/cancel/reset
IndicationsA. 5V DC input, B. 3,5 mm jack main temperature sensor (T1), C. RJ9 (4P4C) Main port for controlling up to 40 ballasts, D. Cage clamp connector EEM1 (output is active when main channel is on), E. Cage clamp connector EEM2 (output is active when main channel is off), F. Cage clamp alarm Normally Open (potential free contact), G. RJ9 (4P4C) Auxiliary port for controlling up to 40 ballasts, H. 3,5 mm jack auxiliary temperature sensor (T2)
